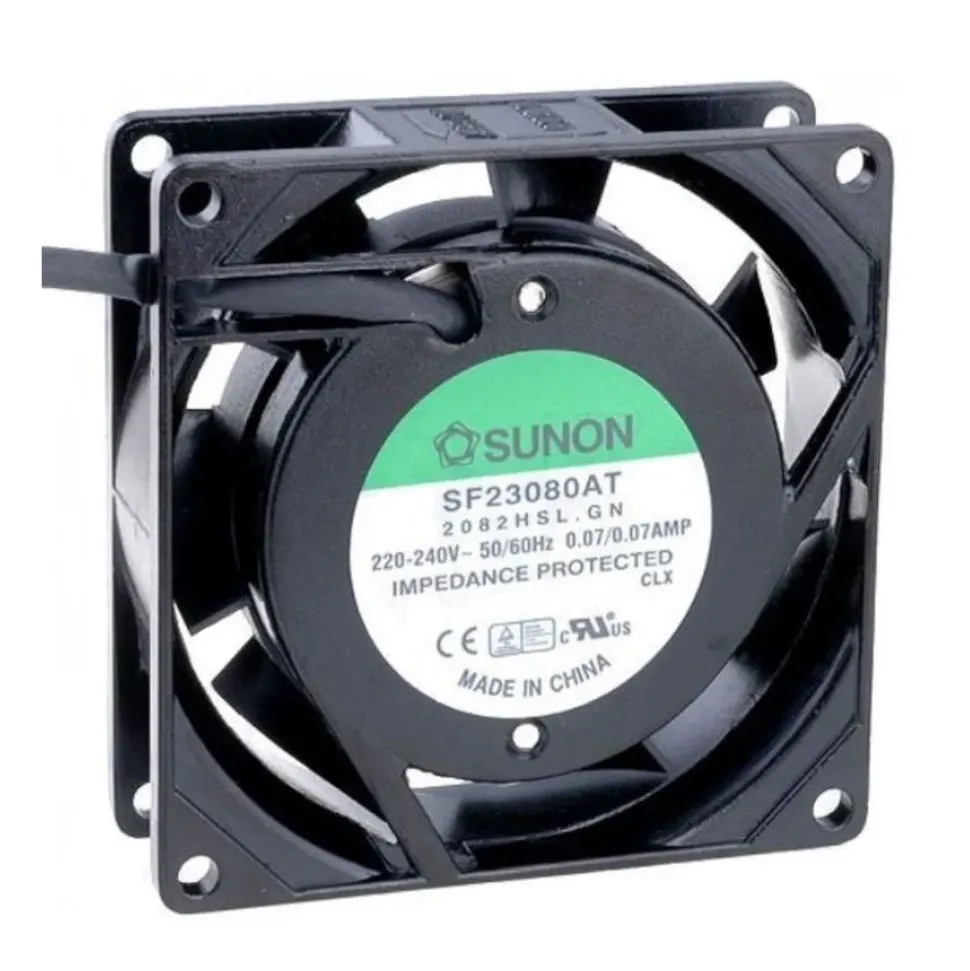

Axialfläkt 230 V 80 mm 80×80

Size (A x A x B): 80 x 80 x 25 mm

Bearing: sleeve

Voltage: 220-240Vac (50-60 Hz)

Airflow: 29-35 m³/hr

Current: 0.07-0.07 A

Speed: 2350-2800 rpm

Noise (at 1m): 29-33 dBA

Connection: leads

Materials:

Blade: thermoplastic PBT (UL94-VO)

Frame: die-cast ALU

Dielectric strength: 1500 Vac for 2 seconds

Insulation resistance: 500 Vdc, 100 Mohm

Tolerance:

Speed: ± 5 %

Airflow: ± 10 %

Airflow: UL-recognised E77551, CSA-certified LR53000, VDE-approval 1350

Operating temperature:

Sleeve bearing: -10°C to +70°C

Ball bearing: -20°C to +80°C
